RCCD – 2012 Scratch Build Project
Components

Project Home

Instructions

Tips / Input by Members

Wood & Hardware

Member project pics

General project pics & information

Last Year's
Stick Project

All wood is supplied. Participants supply their own Radio equipment, engine or motor, and the following items:
When buying what you need from Prop Shop, they will be interested to know it is for your RCCD Scratch build project.

• aileron push rods
• rudder push rod
• elevator push rod
• flexible throttle push rod
• EZ connectors
• nylon control horns- ailerons, rudder, elevator
• tail wheel with nylon bracket
• main landing gear
• main landing gear axles

• main wheels
• wheel collars
• allen cap bolts and washers- engine mount to fire wall, engine to
engine mount, main landing gear to fuselage.
• “T” nuts
• 1/4-20 nylon wing bolts
• CA hinges
• fiberglass tape
• 12oz. Fuel tank (if required)

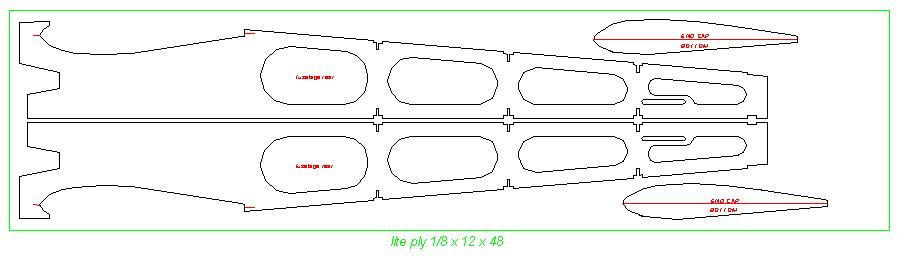

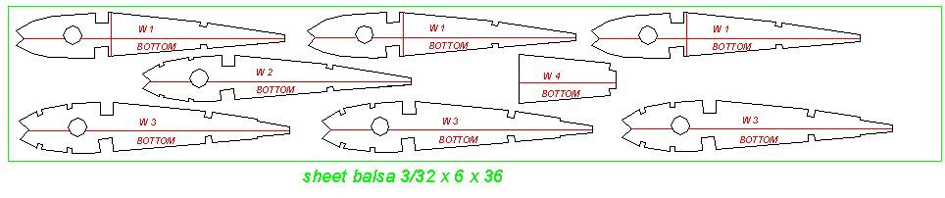

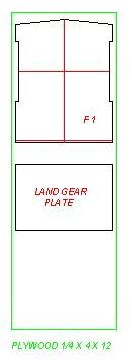

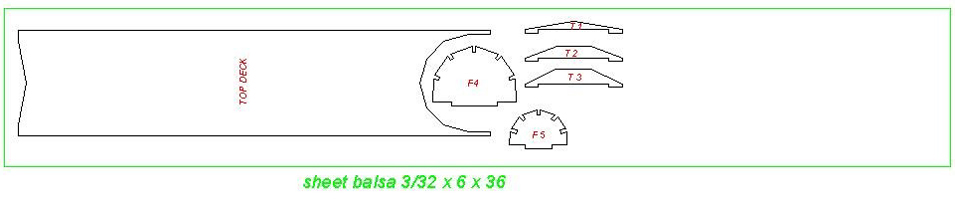

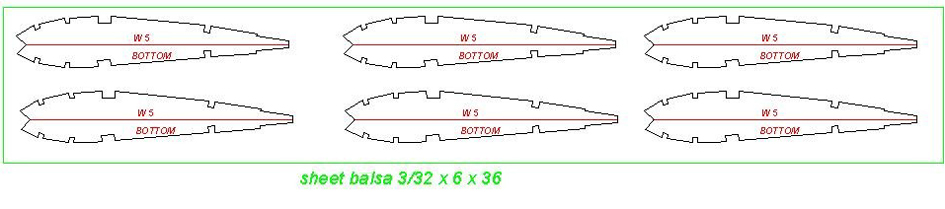

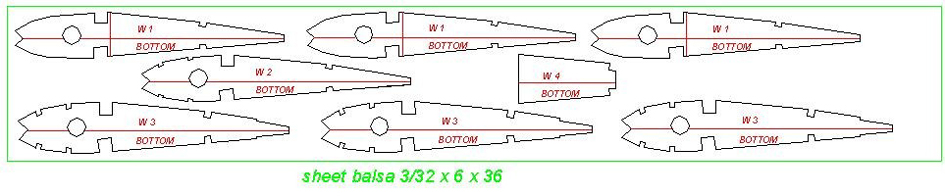

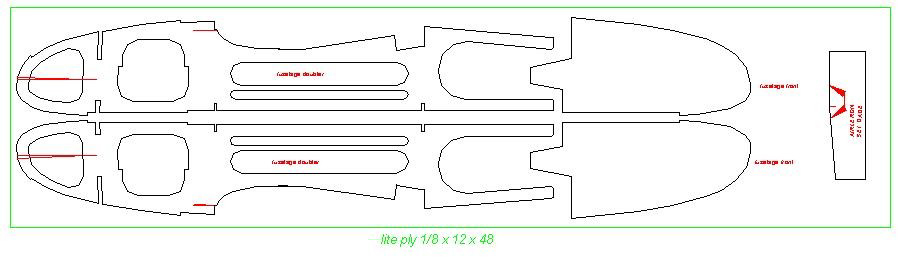

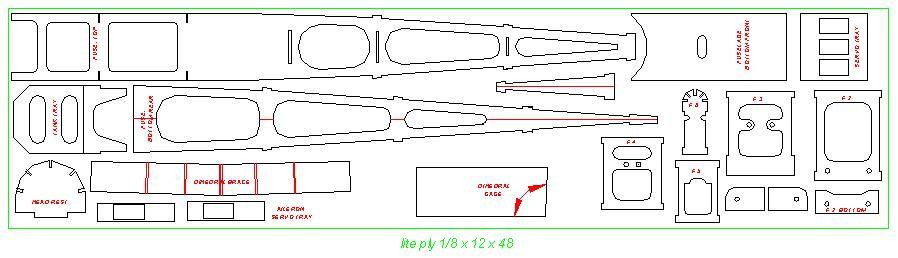

Supplied laser cut parts shown on stock wood sheets:
